Product options
THERMOCOUPLES
And their descriptions, specs, and prices.

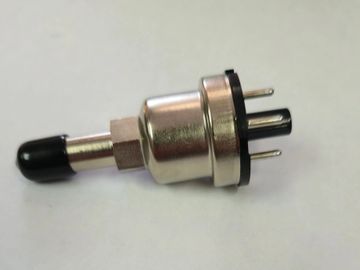

VGT-531 Thermocouple
The VGT-531
is a Varrian 531 equivalent replacement sensor.
Comes standard equipped with: contaminant free, electroless Nickel plated steel housing.
1/8th" NPT male thread mounting port.
Standard JEDEC-4FR, 4-Pin base-operates with existing controller.
Capable of reading 0.1-1000µHg.
Contact us directly for pricing on bulk orders of 100 or more.
VGT-6M
The VGT-6M
is a Varian: VR0060-301equivalent replacement thermocouple.
Comes standard equipped with: contaminant free, electroless Nickel plated steel housing.
1/8th" NP mounting port.
Standard JEDEC-8FR, 8-Pin base-operates with existing controller.
Capable of reading 0.1-1000µHg.
Contact us directly for pricing on bulk orders of 100 or more.
VGT-6M-VRC
The VGT-6M-VCR
is an AMAT 3310-01071, Teledyne Hastings DV-6-VCR, and Brooks 8112105 equivelant replacement thermocouple gauge.
Comes standard equipped with: anti-corrosive Stainless Steal body. 1/4" female threaded VCR adaptor. Standard JEDEC-8FR, 8-Pin base operates with existing controller. Capable of reading 0.1-1000µHg.
Contact us directly for bulk pricing on orders of 100 or more.
VGT-004
The VGT-004, is an equivalent replacement for the Thermionics TG-6343/004M and the CVC GTC-004 thermocouple gauges. Our gauge has an 1/8" NPT male thread port. contaminant free electroless Nickel plated steel housing. And a standard JEDEC-8FR, 8-Pin base, ready to use on your existing controller. Capable of reading 0.1-1000µHg.
Contact us directly for pricing bulk orders of 100 or more.
VGT-6M-KF25
The VGT-6M-KF25
Is a Teledyne Hastings DV-6-KF25 and Novellus 60-00180-00 equivalent thermocouple. Our gauge is the standard TC6M gauge mounted on a KF25 quick fitting flange. Capable of reading 0.1-1000µHg.
Contact us directly for pricing on orders of 100 or more.
